機器特點 / Machine Features：
1.高精度伺服控制系統 ：采用工控級電腦控制平臺，配套進口伺服電機與減速機，確保運行高效、精準、穩定。
High-Precision Servo Control System ：Equipped with an industrial-grade control platform and imported servo motors with planetary reducers, ensuring high efficiency, accuracy, and stability during operation.
2. 二軸結構設計 ：送線軸、繞線軸獨立控制、協同配合，實現多工序復合成型。
Two-Axis Motion Design ：Includes feeding axis, winding axis units. Each axis is independently controlled and works in coordination to perform complex forming tasks.
3. 多種繞線模式與線圈形狀：支持正/反繞、密繞、變距繞、單層/多層等工藝；適配方形、圓形、梯形、跑道形、三角形等復雜線圈結構。
Multiple Winding Modes and Coil Shapes ：Supports clockwise/counterclockwise winding, dense winding, variable pitch, single/multi-layer configurations. Capable of forming square, round, trapezoidal, oval, and triangular coils.
4. 快速換型與高效調試 ：更換模具即可適配不同規格線材，支持參數保存與快速調用，換型便捷、調試時間短。
Quick Changeover and Efficient Setup ：Tooling change allows for different wire specifications; machine parameters can be saved and quickly recalled for fast model switching and reduced setup time.

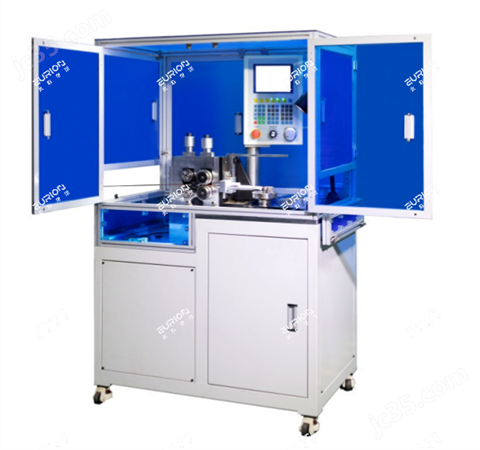

型號 Model | EC-230F |
機器加工能力 Processing Capacity | 厚Thickness : 0.3mm ≤ T ≤ 3.0mm 寬Width : 2.0mm ≤ W ≤ 10.0mm 截面積S=W*T≤ 30mm2 |
繞線方向 Winding direction | 順時針和逆時針 Right and Left Winding |
線圈高度 Max. Coil Height | ≤100mm |
送線電機功率 Wire Feeding Motor Power | 2.7KW |
繞線電機功率 Winding Motor Power | 0.75KW |
翻線電機功率 Wire flipping Motor Power | / |
機器尺寸(長x寬x高) Dimension (L*W*H) | 1050X680X1750 (MM3) |
機器重量 Weight | 500kg |
